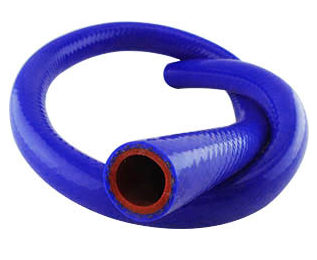

Heater Hose

High temperature resistance

Silicone hoses consistently outperform organic(black rubber or EPDM) hoses to high temperatures of 200℃ when reinforced with aramid or Nomex fabric. Even under extreme conditions the silicone hose will retain excellent tensile strength, elongation, and tear & abrasion resistance.

Low Temperature Flexibility

Silicone hose can maintain dynamic flexibility to temperatures as low as -65°C

Compression Set Resistance

Silicone hose is superior to other elastomers in resistance to compression set or deformation, particularly at high and low temperatures. This is particularly important when a silicone rubber part is used in bellows application where the component is p0laced under pressure or is flexed often where there is movement between components.

Weather & Ozone Resistance

Silicone hose substantially resists the deteriorating effects of sunlight , ozone, rain water, and atmospheric gases, that cause weathering. Even in a very dry environment combined with harsh sunlight our silicone hose will perform well.

Water Resistance

Silicone rubber is noted for its water resistance, it has an extremely low degree of water absorption and its mechanical properties show minimal change, even after long periods of immersion.

Odorless & Tasteless

Self explanatory, this is due to the fact that it does not contain sulfur or other acide producing chemicals that generate out-gassing. The hose won’t stain or corrode other materials and does not support the growth of molds or bacteria as organic materials might.

Color Choices

Many options av



ailable.

Silicone Hose Manufacturing

Quality silicone material-Mixing-Milling-Calendering- Extrude

Heater Hose Specification

Hose  ID		Hose Wall		Hose OD
inches	mm	inches	mm	inches	mm
0.188	4.78	3.51	0.46	0.46	11.79
0.250	6.35	3.51	0.53	0.53	13.36
0.313	7.94	3.51	0.59	0.59	14.95
0.375	9.53	3.99	0.69	0.69	17.50
0.500	12.70	3.99	0.81	0.81	20.68
0.625	15.88	3.99	0.94	0.94	23.85
0.75	19.05	3.99	1.06	1.06	27.03
0.875	22.23	3.99	1.19	1.19	30.20
1.000	25.40	4.29	1.34	1.34	33.99
1.125	28.58	4.93	1.51	1.51	38.43

Note: other sizes also could be customized
